High-Performance GPU Based on Ampere Architecture

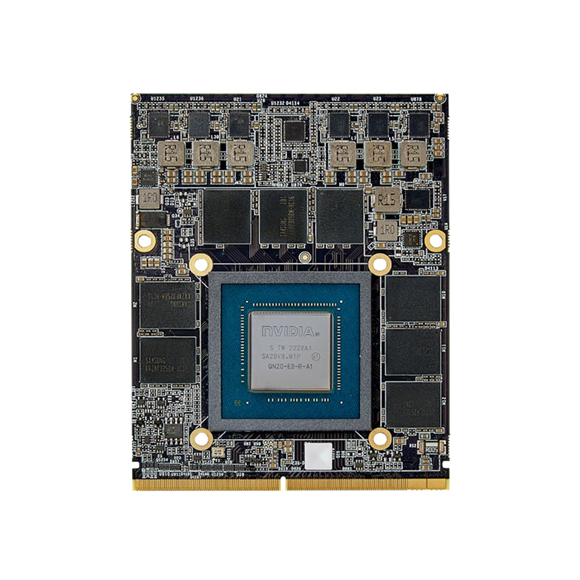

The EBK-MXM-A1000 is based on the NVIDIA Ampere architecture and is equipped with the RTX A4500 GPU. With 5,888 CUDA cores, 184 Tensor cores, and 80 RT cores, it delivers up to 18.55 TFLOPS of FP32 floating-point performance.

This configuration provides powerful capabilities for compute-intensive industrial applications such as deep learning inference, 3D vision processing, and path planning.

Outstanding Memory and Interface Performance

The 16GB GDDR6 memory enables fast processing of large datasets and high-resolution images, while the maximum memory bandwidth of 512 GB/s is optimized for parallel neural network computations.

Additionally, the PCIe Gen4 x16 interface allows for fast and stable data transmission with the system. The built-in ECC (Error Correction Code) functionality ensures high system reliability and stability.

Industrial-Grade Durability and Scalability

The MXM 3.1 Type B form factor (82 x 105mm) delivers high performance while maintaining a compact size, making it ideal for embedded systems with strict space constraints. Extended models are available that can operate in temperatures from -40°C to +70°C, ensuring stable performance even in harsh environments.

Power consumption ranges from 80W to 125W depending on the model, allowing flexible selection according to required performance and system thermal demands. With up to four DisplayPort outputs and support for 7680x4320 resolution, it can also be used for simulation equipment and integrated control systems that require high-resolution displays.

Broad API Compatibility and Operating System Support

The EBK-MXM-A4500 supports the latest graphics and compute APIs, including CUDA 8.6, DirectX 12 Ultimate, Vulkan 1.2, and OpenGL 4.6, to accommodate a wide variety of development environments.

It is compatible with both Windows 10/11 64-bit and Linux 64-bit operating systems, ensuring versatility and flexible development.

An Ideal Solution for Embedded Applications

For various embedded platforms such as autonomous mobile robots (AMRs), size, weight, heat dissipation, power consumption, and environmental adaptability must all be considered. The EBK-MXM-A4500 series meets all these requirements while delivering top-tier computational performance, making it a highly suitable choice for embedded systems requiring complex AI tasks such as SLAM, object recognition, real-time inference, and 3D sensor fusion.
