IP67-rated waterproof and dustproof design
Intel® Alder Lake Core™i3-N305 with 8 E-cores
-25 °C to 70 °C temperature operation
2x 2.5Gb Ethernet ports via M12 X-coded connectors
1x isolated RS-232, 1x isolated RS-422/485 via M12 A-coded connector
3x isolated DIO and 1x CAN2.0B via M12 A-coded connector
8-35V DC input with ignition power control input via M12 A-coded connector

• Key Features
• Product information
• Download

Introduction

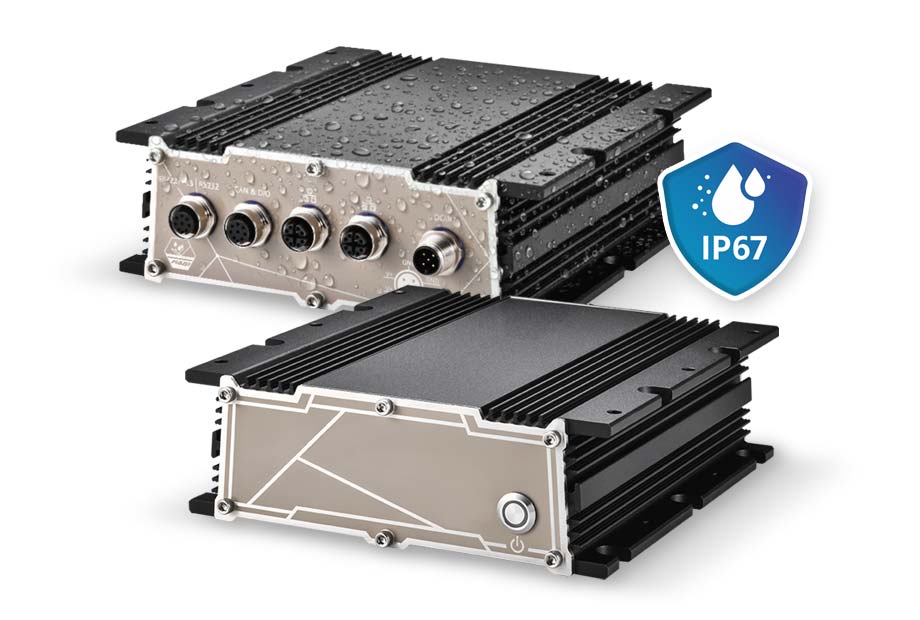

POC-766AWP is Neousys' new-generation AWP-series waterproof fanless embedded computer, featuring upgraded performance and enhanced rugged design. Powered by the Intel® i3-N305 processor and supporting DDR5 memory, it delivers a major boost in performance within a fully sealed IP67-rated enclosure. Built with stainless steel and aluminum, it provides two thermal solutions: direct-contact cooling inside metal cabinets and fanless cooling for standalone installation. POC-766AWP ensures reliable operation for demanding industrial and outdoor applications.

Engineered for industrial reliability, POC-766AWP features rugged I/O connectivity designed for demanding field environments. It provides dual 2.5GbE M12 X-coded connectors for secure, vibration-resistant Ethernet connections, as well as one isolated RS-232 and one isolated RS-422/485 port to ensure stable data transmission and protection against electrical surges. The system also supports CAN bus and isolated Digital IO, along with a Mini-PCIe slot for wireless WiFi or LTE modules. Additionally, two internal USB 3.2 ports and one HDMI interface are available for use in non-waterproof environments, offering convenient access for system configuration or peripheral expansion.

POC-766AWP delivers IP67-level protection with an optimized balance between performance and cost. Its compact design and M12 connectivity guarantee protection against moisture, vibration, and dust, ensuring continuous operation in harsh environments. Designed for real-world durability and minimal maintenance, POC-766AWP is ideal for applications such as agriculture, outdoor equipment, and industrial vehicles.
