Alecs G1-510 NX16
Product > Camera > Embeded Camera

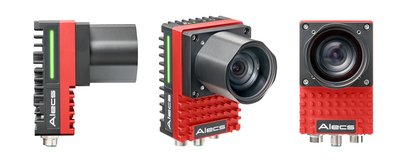

Alecs G1-510 NX16

• Open Smart Camera Solution for Machine Vision
• An all-in-one system that integrates powerful computing power and camera capabilities beyond just camera components (parts)
• Integrates NVIDIA® Jetson Orin™ NX System on Module (SoM) processors to handle advanced AI and deep learning algorithms directly from the camera itself (edge)
Inquiry
• Alvium feature set
• NVIDIA Jetson Orin NX16
• IMX548 CMOS sensor
• 1000BASE-T interface
• IP67
• Comprehensive accessories
• 2464(H) * 2064 (V)
• 2.74um
• 1/1.8"
• C Mount
• 81fps

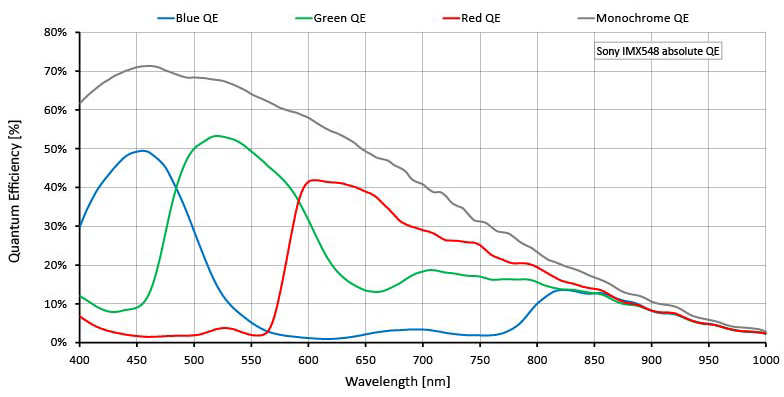

• Spectral Range 300 to 1100nm
• Extended memory(non-volatile) 128GByte(NVME SSD)
• IEEE 802.3 1000BASE-T (1GigE)
해상도(MP) 5 해상도(M x V) 2464 x 2064
센서명 Sony IMX548 센서타입 CMOS
센서사이즈 1/1.8" 픽셀크기(um) 2.74㎛
속도(FPS) 81 인터페이스 GigE
셔터모드 Global shutter 렌즈마운트 C Mount
제품사이즈(L x W x H)mm 102.3 * 72 * 111.75mm 무게(g) Without lens (with lens tube) : 810 g (LT4649), 820 g (LT4670)
Brand Allied vision


• Auto exposure
• Auto gain
• Auto white balance (color models)
• IP67 Lens Tubes 49 mm or 70 mm for different lens sizes
  (part of the delivery)
• Lenses optimized for 5 MP and 12 MP resolution
• Network cables M12 X-coded to RJ45
• Power and I/O cables M12 12-pin to open ends
• Lighting cables M12 5-pin to open ends
• Camera ring light RMX140



Sort FileName Download
Catalog Not attached
Completion
FileName Not attached
Completion
Datasheet Alecs_G1-510_NX16_DataSheet_en.pdf Download
