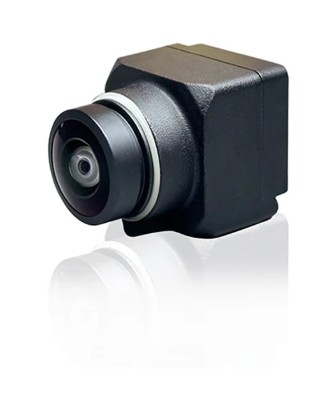

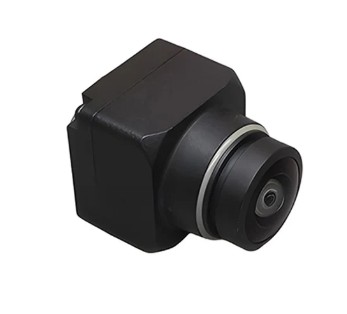

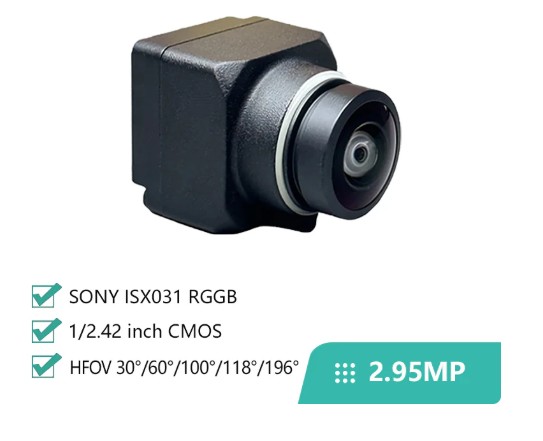

SONY ISX031 with ISP GMSL2 Camera
ISX031 GMSL2 카매라는 SONY CMOS 이미지 센서 ISX031과 Maxim GMSL2 serializer MAX96717F를 탑재하고 있습니다. 차량용 센서와 설계된 이미지 신호 프로세서(ISP)를 갖추고 있어 뛰어난 화질을 제공합니다. IP67 등급의 인클로저에 포함되어 있으며 AA 렌즈가 함께 제공됩니다.
Product description
Overview
ISX031-GMSL2-Hxxx is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory.
Specifications
Model : ISX031-GMSL2
Resolution : 1920H*1536V
Frame Rate : 1920*1536@30fps
Sensor : SONY 2.95MP ISX031 RGGB
ISP : Built-in
Connector : Amphenol Fakra（Z Code ）
Output data : YUV422@8bit
Serializer : MAXIM MAX96717F
Sensor Type : Rolling shutter
Operating temp.range : -40°C～+85°C

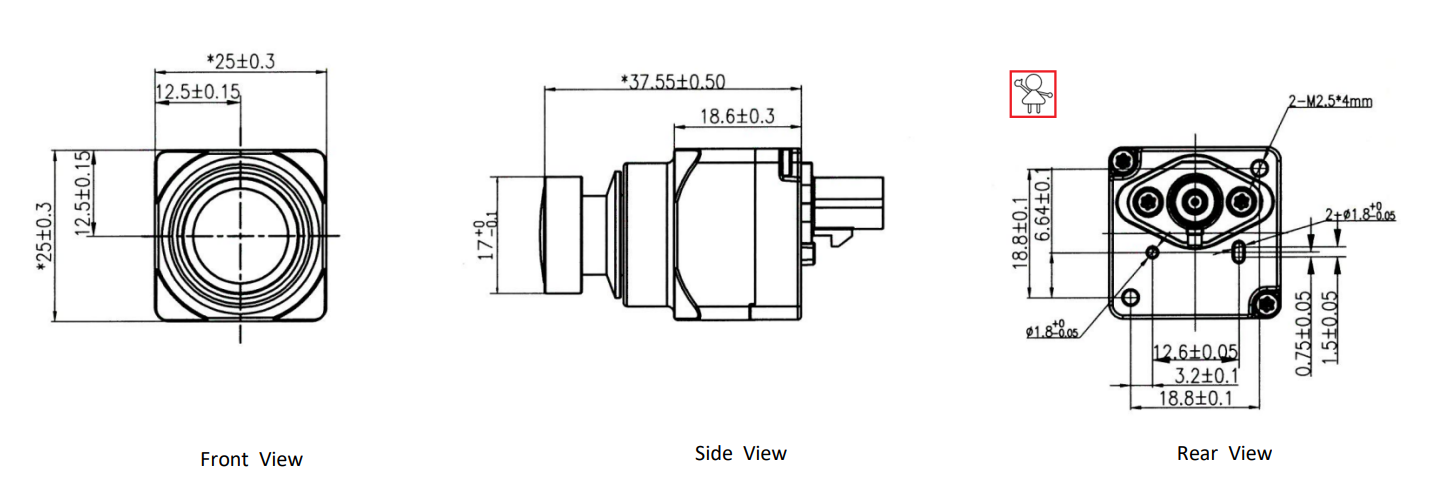

Dimensions : 25mm*25mm*18.6mm
Weight : <50g
HFOV : 30°/60°/100°/118°/196°
Features
Output format: Uncompressed YUV422 format
AA IP67 compliant lens focused and glued at our factory
External trigger support
Multi−Camera synchronization Support
Support different focal length lens
Application
Automotive
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robots
Model and Lens
Overview
ISX031-GMSL2-Hxxx is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory.
Specifications
Model : ISX031-GMSL2
Resolution : 1920H*1536V
Frame Rate : 1920*1536@30fps
Sensor : SONY 2.95MP ISX031 RGGB
ISP : Built-in
Connector : Amphenol Fakra（Z Code ）
Output data : YUV422@8bit
Serializer : MAXIM MAX96717F
Sensor Type : Rolling shutter
Operating temp.range : -40°C～+85°C
Dimensions : 25mm*25mm*18.6mm
Weight : <50g
HFOV : 30°/60°/100°/118°/196°
Features
Output format: Uncompressed YUV422 format
AA IP67 compliant lens focused and glued at our factory
External trigger support
Multi−Camera synchronization Support
Support different focal length lens
Application
Automotive
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robots
Model and Lens
| 해상도(MP) | 해상도(M x V) | ||
|---|---|---|---|
| 센서명 | 센서타입 | ||
| 센서사이즈 | 픽셀크기(um) | ||
| 속도(FPS) | 인터페이스 | ||
| 셔터모드 | 렌즈마운트 | ||
| 제품사이즈(L x W x H)mm | 무게(g) | ||
| 제조사 | NeXber |
